MmuEX0043442 @ mm10
Exon Skipping
Gene
ENSMUSG00000024485 | Slc4a9
Description
solute carrier family 4, sodium bicarbonate cotransporter, member 9 [Source:MGI Symbol;Acc:MGI:2443384]
Coordinates
chr18:36536847-36540891:+
Coord C1 exon
chr18:36536847-36536919
Coord A exon
chr18:36539604-36539777
Coord C2 exon
chr18:36540736-36540891
Length
174 bp
Sequences
Splice sites
3' ss Seq
TTTTCCCCTCATTCTCTCAGTTC
3' ss Score
8.54
5' ss Seq
ATGGTAACT
5' ss Score
6.06
Exon sequences
Seq C1 exon
GGAACAGAGGCTGACGGGCTTGGTGGTGTTCGTCCTTACAGGTGTCTCCATCTTCCTGGCACCTGTGCTCAAG
Seq A exon
TTCGTGAAGAGAGTGCAGCTATTGTTGATGCCAAGGAAACATCAGCCAGACATGCTGCTCCTGCGGCATGTGCCTCTGAGCAGAGTTCACCTCTTCACAGCCATCCAGCTTGCCTGCCTAGGTCTGCTTTGGGTAGTCAAGTCTACCCCTGCAGCCATTGTCTTCCCACTCATG
Seq C2 exon
TTACTGGGCCTGGTGGCCATCCGGAAGGCACTGGAGTGGGTCTTCTCACCACAGGAACTCCTCTGGCTGGATGAGCTGATGCCAGAGGAGGAGGAGACCATCCCCGAGAACAGGTCCGAGCCAGAGCACTTGTTCAGTGGAAATGACAGTGAAGAT
VastDB Features
Vast-tools module Information
Secondary ID
ENSMUSG00000024485_MULTIEX2-2/3=C1-3
Average complexity
C3
Mappability confidence:
100%=100=100%
Protein Impact
Alternative protein isoforms (Ref)
No structure available
Features
Disorder rate (Iupred):
C1=0.000 A=0.000 C2=0.327

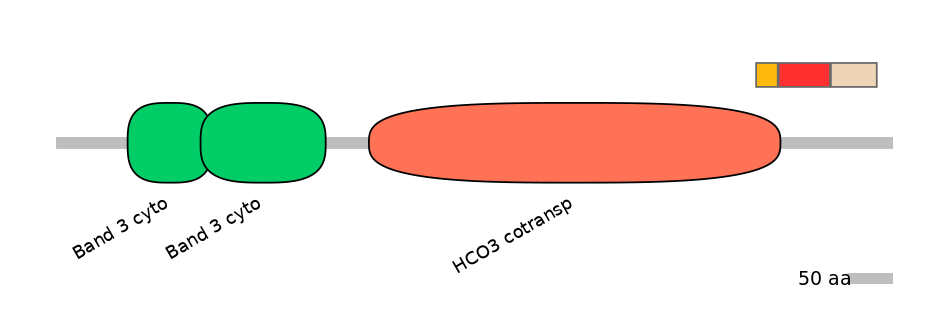

Domain overlap (PFAM):
C1:
PF0095516=HCO3_cotransp=FE(5.7=100)
A:
PF0095516=HCO3_cotransp=PD(8.1=58.6)
C2:
NO
Main Skipping Isoform:
NA
Other Skipping Isoforms:
NA
Associated events
Other assemblies
Conservation
Fruitfly
(dm6)
No conservation detected
Primers PCR
Suggestions for RT-PCR validation
F:
GAACAGAGGCTGACGGGC
R:
TCTTCACTGTCATTTCCACTGAACA
Band lengths:
227-401
Functional annotations
There are 0 annotated functions for this event
GENOMIC CONTEXT[edit]
INCLUSION PATTERN[edit]
SPECIAL DATASETS
- Pre-implantation embryo development
- Ribosome-engaged transcriptomes of neuronal types
- Neural differentiation time course
- Muscular differentiation time course
- Spermatogenesis cell types
- Reprogramming of fibroblasts to iPSCs
- Hematopoietic precursors and cell types
