HsaEX0069394 @ hg19
Exon Skipping
Gene
ENSG00000156687 | UNC5D
Description
unc-5 homolog D (C. elegans) [Source:HGNC Symbol;Acc:18634]
Coordinates
chr8:35588530-35608327:+
Coord C1 exon
chr8:35588530-35588614
Coord A exon
chr8:35606045-35606213
Coord C2 exon
chr8:35608100-35608327
Length
169 bp
Sequences
Splice sites
3' ss Seq
TCCTTTTTTCAACTGTGAAGCCT
3' ss Score
4.01
5' ss Seq
GAGGTGAGA
5' ss Score
7.66
Exon sequences
Seq C1 exon
GGGTGAGCTTACTCATACCACACGGTGCCATCCCAGAGGAGAATTCTTGGGAGATTTATATGTCCATCAACCAAGGTGAACCCAG
Seq A exon
CCTCCAGTCAGATGGCTCTGAGGTGCTCCTGAGTCCTGAAGTCACCTGTGGTCCTCCAGACATGATCGTCACCACTCCCTTTGCATTGACCATCCCGCACTGTGCAGATGTCAGTTCTGAGCATTGGAATATCCATTTAAAGAAGAGGACACAGCAGGGCAAATGGGAG
Seq C2 exon
GAAGTGATGTCAGTGGAAGATGAATCTACATCCTGTTACTGCCTTTTGGACCCCTTTGCGTGTCATGTGCTCCTGGACAGCTTTGGGACCTATGCGCTCACTGGAGAGCCAATCACAGACTGTGCCGTGAAGCAACTGAAGGTGGCGGTTTTTGGCTGCATGTCCTGTAACTCCCTGGATTACAACTTGAGAGTTTACTGTGTGGACAATACCCCTTGTGCATTTCAG
VastDB Features
Vast-tools module Information
Secondary ID
ENSG00000156687-'16-16,'16-15,17-16
Average complexity
S
Mappability confidence:
100%=100=100%
Protein Impact
ORF disruption upon sequence exclusion
No structure available
Features
Disorder rate (Iupred):
C1=0.000 A=0.088 C2=0.013

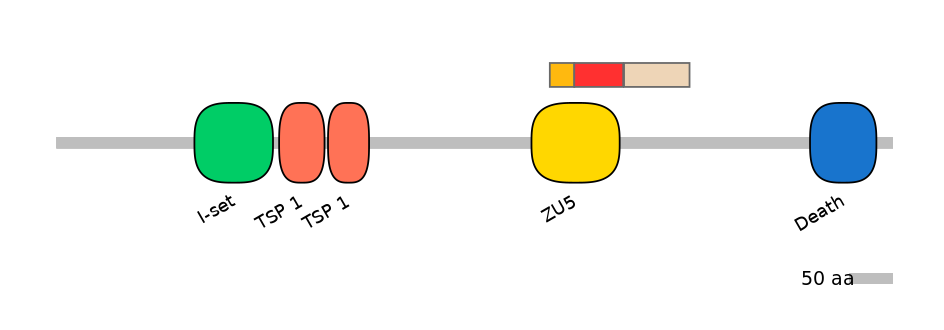

Domain overlap (PFAM):
C1:
PF0079115=ZU5=FE(27.5=100)
A:
PF0079115=ZU5=PD(51.0=91.2)
C2:
NO
Main Skipping Isoform:
NA
Other Inclusion Isoforms:
Other Skipping Isoforms:
NA
Associated events
Other assemblies
Conservation
Fruitfly
(dm6)
No conservation detected
Primers PCR
Suggestions for RT-PCR validation
F:
CCATCAACCAAGGTGAACCCA
R:
GCACAAGGGGTATTGTCCACA
Band lengths:
243-412
Functional annotations
There are 0 annotated functions for this event
GENOMIC CONTEXT[edit]
INCLUSION PATTERN[edit]
SPECIAL DATASETS
- Autistic and control brains
- Pre-implantation embryo development
