GgaEX6019361 @ galGal4
Exon Skipping
Gene
ENSGALG00000011262 | KCNH8
Description
potassium channel, voltage gated eag related subfamily H, member 8 [Source:HGNC Symbol;Acc:HGNC:18864]
Coordinates
chr2:36094148-36106127:+
Coord C1 exon
chr2:36094148-36094279
Coord A exon
chr2:36102659-36102786
Coord C2 exon
chr2:36105887-36106127
Length
128 bp
Sequences
Splice sites
3' ss Seq
CTCTCACCTCTGTTCTACAGAGA
3' ss Score
7.69
5' ss Seq
AACGTAGGT
5' ss Score
7.3
Exon sequences
Seq C1 exon
GGTCTTCATTCTGGTGCCTATTGGATATTGTTCCTATAAAGAATGAAAAAGGAGATGTAGTACTATTTCTGGCCTCTTTCAAAGATATAACAGACACAAAAGTGAAGATTGCTGCAGAAGACAAAAAGGAAG
Seq A exon
AGAAATGGAAAGGAAGAGGAAGAGCAGGGTCACATTTTGATTCAGCACGAAGACGGAGTAGAGCTGTCCTTTATCATATCTCTGGACACCTACAAAGAAGAGAGAAGAACAAATTAAAAATTAATAAC
Seq C2 exon
AACGTTTTTGTAGATAAACCAGCATTTCCAGAATACAAAGTTTCAGATGCAAAAAAATCCAAATTCATACTGTTGCATTTTAGCACTTTCAAAGCTGGCTGGGACTGGCTTATTTTACTGGCAACGTTTTATGTTGCTGTGACTGTACCTTACAATGTTTGCTTTATTGGCCATGATGAGCTGTCTACAACTCGAAGCACAACTGTCAGTGACATTGCAGTGGAAATTCTTTTTATCATTG
VastDB Features
Vast-tools module Information
Secondary ID
ENSGALG00000011262-'1-2,'1-1,2-2=AN
Average complexity
A_S
Mappability confidence:
100%=100=100%
Protein Impact
ORF disruption upon sequence exclusion
No structure available
Features
Disorder rate (Iupred):
C1=0.000 A=0.000 C2=0.000

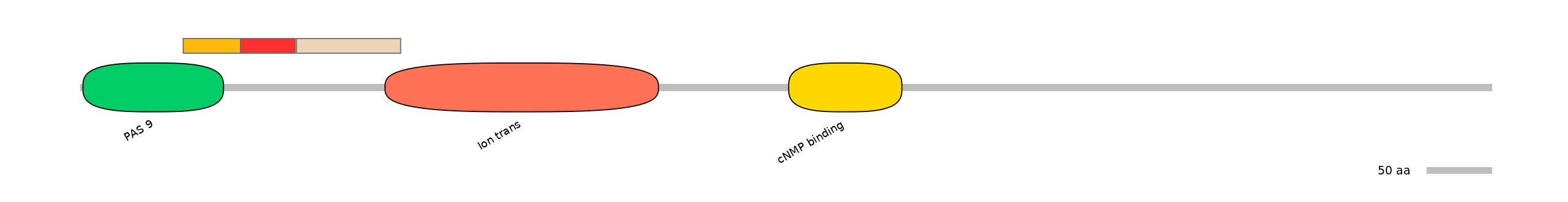

Domain overlap (PFAM):
C1:
PF134261=PAS_9=PD(28.4=68.9)
A:
NO
C2:
PF0052026=Ion_trans=PU(5.7=14.8)
Main Skipping Isoform:
NA
Other Inclusion Isoforms:
NA
Other Skipping Isoforms:
NA
Associated events
Other assemblies
Conservation
Primers PCR
Suggestions for RT-PCR validation
F:
AGTGAAGATTGCTGCAGAAGACA
R:
GTCACTGACAGTTGTGCTTCGA
Band lengths:
245-373
Functional annotations
There are 0 annotated functions for this event
